350-560MHZ UV Combiner UV Splitter LC Filter RF Antenna Combiner DC-185MHZ

350-560MHZ UV Combiner UV Splitter LC Filter RF Antenna Combiner DC-185MHZ

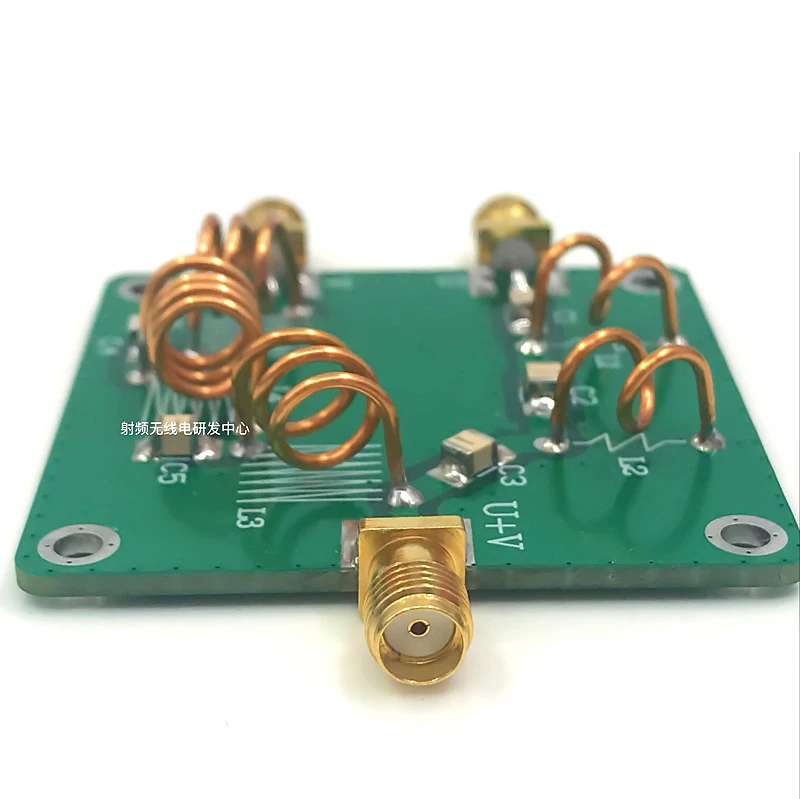

Combiner DC-185MHZ 350-560MHZ UV Combiner UV Splitter LC Filter RF Antenna, Antenna Combiner DC-185MHZ 350-560MHZ UV Combiner UV Splitter LC Filter RF, 350-560MHZ UV Combiner UV Splitter LC Filter RF Antenna Combiner DC-185MHZ, Suitable for UV differential link or relay station, the components use foreign high-quality high-power high-voltage RF dedicated capacitors, featuring low loss and large power capacity, Technical indicators 1) Working frequency: V segment DC-185MHZ U segment 350-560MHZ 2) Insertion loss: V segment: <0,2dB U segment: <0,3dB 3) Standing wave ratio: <1,5 4) UV isolation: >45dB 5) Power capacity: 200W (using imported power capacitor) 6) Dimensions:50*50mm,The passive module is used to synthesize two frequency RF signals of U and V segments, or separate the U and V common signals into two independent paths, thereby sharing one transmission cable or sharing one signal for two signals, UV dual frequency antenna,Big Labels Small Prices,Manufacturer Price,Get your own style now! Up to 80%..
